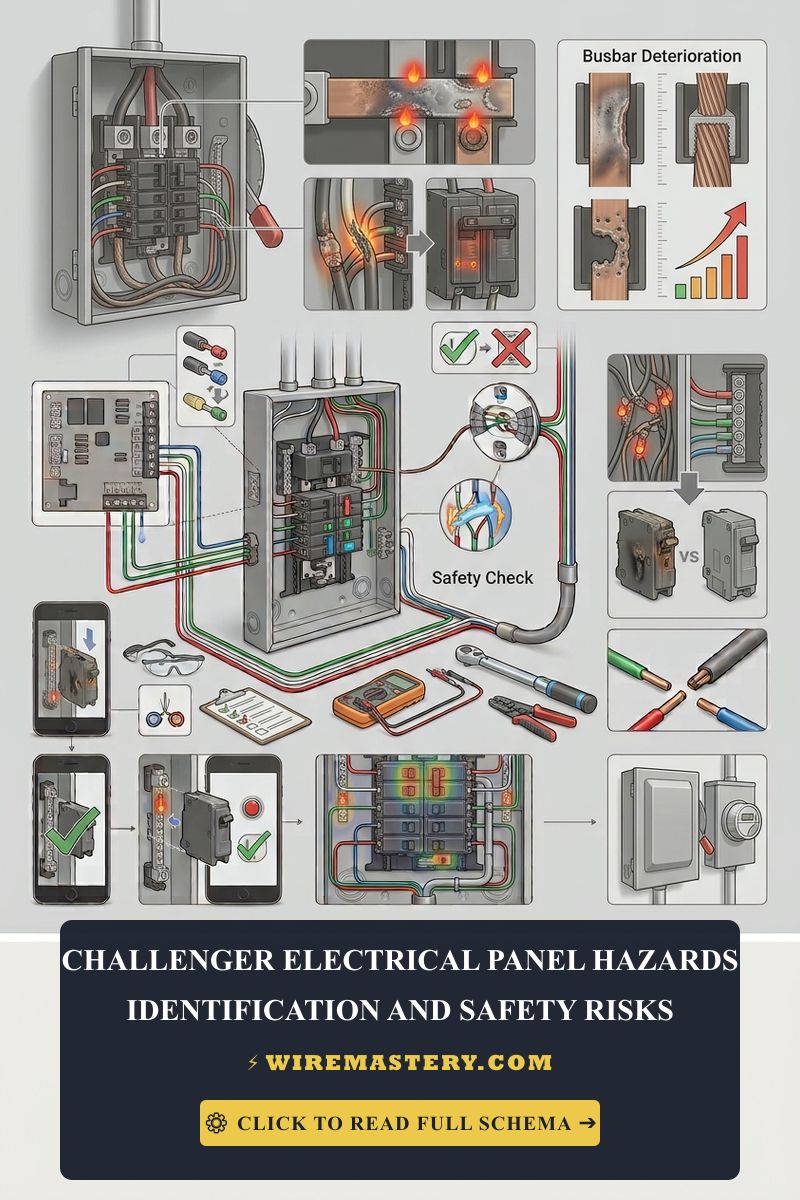

Challenger Electrical Panel Hazards: Contractor Audit Guide
Engineering a comprehensive structural safety evaluation to isolate and audit the severe life-safety liabilities associated with a legacy Challenger electrical panel board demands a rigorous operational command of metallurgical oxidation coefficients, circuit breaker latch failures, and split-phase switchgear clearance boundaries. Distributed extensively across millions of North American residential housing developments throughout the 1970s and 1980s, these obsolete distribution hubs present an unmitigated fire and shock hazard systematically flagged by home insurance underwriters, structural home inspectors, and code enforcement authorities. The underlying engineering breakdown inside Challenger systems is not a simple wear-and-tear timeline event; it is a critical mechanical design defect within the plug-on breaker jaw clips and the structural composition of the central bus bar rails, which triggers intense localized thermal runaways without ever activating the breaker’s overcurrent magnetic trip latch.
To maintain absolute diagnostic and safety integrity across aged distribution infrastructures, technicians must integrate these hazard profiles directly with verified commercial electrical blueprint schedule mapping techniques and certified NEC Article 220 service load calculation equations.
This forensic reference manual despatches the precise structural processes required to isolate Challenger manufacturing defects, verify dynamic bus bar overheating, and employ advanced utility-level diagnostic toolkits.
Core Challenger Metallurgical and Mechanical Fault Modes
Before removing deadfront steel enclosures or probing internal hardware components, technicians must master the explicit material degradation vectors unique to Challenger panels:
- The Bus Bar Galvanic Overheating Vector: Challenger panels utilize central bus bar rails manufactured from a non-plated aluminum or low-grade copper alloy matrix. Over extensive operational duty cycles, the mechanical friction jaw clips of the plug-on breakers lose their spring compression coefficients, allowing moisture and current to induce severe oxidation. This oxide layer multiplies terminal electrical resistance, converting current flow into extreme localized thermal footprints exceeding 140°F / 60°C under normal continuous loads.
- The Latent Breaker Latch Failure: Independent laboratory testing of legacy Challenger Type C (single-pole) and Type A (dual-pole) circuit breakers confirms an unacceptable failure-to-trip rate under sustained thermal overcurrent conditions. Instead of deflecting to isolate a compromised branch loop, the internal mechanical latches suffer from heat-welding profiles, remaining permanently energized while passing thousands of Amperes down to downstream wires.
- The Gutter Fill Spacing Clearance Deficit (NEC 314.28): Most vintage Challenger enclosures incorporate narrow, highly restrictive internal gutter volumes. Forcing modern high-density branch conductor wire nuts and solid copper bundles into these tight pathways suppresses ambient air ventilation, accelerating material insulation breakdown and inducing structural phase-to-ground arc faults.
Technical Materials & High-Energy Switchgear Diagnostic Toolkit
Safely screening live electrical bus structures and measuring micro-volt drop sags requires specialized testing instrumentation and ASTM-certified insulated hand tools:
| Industrial Panel Auditing Tool | Primary Engineering Purpose & Trade Safety Threshold |
|---|---|
| Infrared Thermal Laser Scanner | Non-contact thermal camera used to map active breaker casing hotspots from a safe distance. |
| True RMS CAT IV Clamp Meter | Category CAT IV 600V certified to safely capture continuous service entrance feeder currents. |
| Digital Insulation Resistance Tester | A specialized high-voltage megohmmeter to audit branch wire insulation at 500V DC. |
| 1000V Insulated Square Screwdriver | Cushioned ASTM F1505 rated driver to safely back out deadfront retaining panel screws. |
| Class 00 Dielectric Rubber Gloves | Certified high-density rubber wraps rated to isolate skin from up to 500V AC continuous. |
Service Entrance Metallurgy & Conductor Sizing Constraints (NEC 310.16)
When planning a total main panel changeover to replace a hazardous Challenger footprint, estimators must size the replacement conductors and primary overcurrent circuit protection devices to match the criteria enforced under NEC Article 310.16 parameters:
- 100-Amp Replacement Panel Minimum: Sized as the absolute legal minimum baseline for small single-family residential properties. Requires a minimum conductor cross-section of #4 AWG copper THWN strands or #2 AWG aluminum conductor lines routed inside a rigid conduit run.
- 200-Amp Replacement Panel Standard: The modern residential standard required to safely absorb level-2 electric vehicle charging stations, continuous HVAC compressor arrays, and automated smart home panel extensions. Demands an upscale to 2/0 (Two-Ought) AWG copper conductors or 4/0 (Four-Ought) AWG aluminum conductor lines to guarantee absolute line-voltage stability under concurrent appliance startups.
Technical Phase 2: Professional Service Disconnection & Code-Compliant Panel Overhaul
Replacing a hazardous, fire-prone Challenger distribution center requires breaking the primary service utility drop lines. Treat this strictly as a master-level utility service operation; attempting to remove internal components while the main incoming lugs are live creates an unmitigated arc-flash hazard.
1. The Critical Upstream Power Isolation Protocol (NEC Article 230)
The single most dangerous misconception among DIY apprentices is assuming that shifting the integrated main 100A or 200A breaker handle to “OFF” renders the entire box enclosure safe.
- The Physical Reality of the Hazard: Shifting the main disconnect handle only cuts power to the branch bus bars down the line. The heavy overhead or underground service lines trailing from the municipal utility transformer drop straight onto the Main Service Lugs at the top of the panel, leaving them energized with raw 240V potential continuously. Accidental contact with these lugs will bypass all building safety devices, vaporizing metal tools in a high-energy arc flash.
- The Contractor Clearance Workflow: To complete the swap in full compliance with NEC Article 230 guidelines, a licensed Master Electrician must coordinate a formal service cut with the local utility provider. A utility technician must slice the security wire seals on the outdoor meter box housing and extract the glass meter socket plug entirely, completely severing the property envelope from the power grid before a single wire nut or panel screw is backed out.
2. Step-by-Step Panel Replacement Sequence
Once an absolute zero-energy state is verified across both the incoming lugs and branch conductors using a CAT IV multimeter, apply this structured trade sequence to execute the swap:
- Index and Label the Existing Branches: Use a high-visibility vinyl marking kit to permanently index every single hot and neutral conductor bundle to its corresponding room layout branch before cutting any copper lines.
- Extract the Defective Challenger Core: Back out the sheet-metal retaining screws anchoring the old Challenger box into the structural framing wall studs. Disconnect the raw #4 or 2/0 AWG feeder lines carefully. Drop the gutted metal shell out of the cavity framing.
- Mounting the Modern UL 489 Enclosure: Mount a brand-new, premium code-compliant distribution panel center (such as a Square D QO or Eaton CH panel board) level and plumb into the wall cavity.
- Terminating the Main Service Feeder Lugs: Route your heavy service lines into the new panel main lug pressure plates. Use your 1000V insulated torque wrench to tighten the lug screws to the exact manufacturer engineering specifications stamped on the metal shell (typically 250 inch-pounds for a 200A service), preventing localized cold-flow oxidation hotspots.
- Re-Bonding the System Grounding Electrode Matrix (NEC Article 250): Connect your #4 AWG bare copper grounding line straight to the new panel’s primary grounding bus bar strip. Route this line out to dual copper grounding rods driven 8 feet deep into the soil bed outside, and run a dedicated bonding jumper over to the municipal metallic cold water pipe infrastructure to guarantee a stable zero-potential safety reference. Re-land all branch hots and neutrals onto matching circuit breakers, re-mount the deadfront plate, and authorize the utility company to re-insert the outdoor meter plug.
🛠️ The Plug-On Neutral Gutter Advantage Note: Look closely at the multi-circuit panel board blueprints displayed across our modern home automation manuals. Modern high-end panels utilize an integrated Plug-On Neutral bus bar assembly. Unlike legacy Challenger panels where every individual Arc-Fault (AFCI) circuit breaker required a long, flexible white curly pigtail wire routed manually back to the neutral bar, plug-on neutral breakers clamp directly onto an integrated metal rail track. This engineering feature eliminates 80% of wire congestion inside the panel gutters, maximizing ventilation headroom and suppressing wire pinching fault codes during high-density wire expansions.
Troubleshooting Post-Upgrade Subpanel Anomalies
- The Main Breaker Holds Power but the Lighting Circuits Hum Intensively: This behavior indicates an active terminal torque deficit or subpanel branch imbalance fault. Use your digital clamp ammeter around each primary phase wire to audit active current distributions. If one leg is drawing 80 Amps while the sister leg floats at 15 Amps, the panel bus bars undergo intense electromagnetic strain, generating physical micro-vibrations. Redistribute breakers across the phase phases to balance the load matrix evenly.
- The Newly Installed AFCI Breakers Trip Intermittently Upon Panel Initialization: An absolute indicator of a Downstream Neutral-to-Ground Cross-Connection. While the old Challenger circuit breakers were completely blind to micro-ampere leaks and remained energized, a modern Arc-Fault circuit breaker uses an internal solid-state chip to monitor current frequencies. If an old junction box down the line has a sagging white neutral wire touching the bare copper ground, the new AFCI will trip within milliseconds. Use your multimeter in unpowered resistance mode to isolate the compromised segment box by box.
- A Brand-New Heavy Breaker Toggle Feels Mushy or Refuses to Stay Latched: This indicates the internal safety mechanism is responding to an active downstream dead short circuit fault. You have a hot wire making direct metal-to-metal contact with a neutral conductor or the grounded steel gang box. Do not attempt to force the handle closed. Isolate the circuit and trace the line resistance before attempting another manual reset.
National Electrical Code Switchgear Location Regulations
Adhering to strict national structural regulations protects your home infrastructure from electrical fire hazards, maintains full property insurance validity, and ensures complete alignment with federal inspection boundaries. The National Electrical Code strictly regulates residential service entrances, panel boards, and overcurrent protections under NEC Article 110 (Requirements for Electrical Installations) and Article 408 (Switchboards and Panelboards). In this article, those provisions inform the Challenger Electrical Panel Hazards: Contractor Audit Guide.
- The Clear Working Space Mandate (NEC 110.26): Electrical distribution centers and main service panels must maintain an absolute, un-obstructed physical clear working space of at least 3 feet (36 inches) of front depth clearance and 30 inches of flat width clearance from the face of the deadfront shield, extending from the floor up to a minimal height of 6.5 feet. Storing household items or chemical containers within this boundary zone is a critical federal building code violation.
- Main Bonding Jumper Enforcement (NEC 250.28): In a property’s primary service entrance panel, a certified, unspliced main bonding jumper screw (typically a heavy bright green machine screw) must be driven straight through the neutral bus bar block directly into the metallic chassis enclosure box steel frame. This mandatory link provides a stable ground fault path, ensuring upstream breakers trip instantly during an active terminal short circuit blowout.
For the NFPA 70 provisions relevant to this guide on Challenger Electrical Panel Hazards: Contractor Audit Guide, consult the Official NFPA 70: National Electrical Code (NEC).
Conclusion
This article explains legacy Challenger failure modes, executing visual thermal audits using non-contact infrared laser scanners, and coordinating utility-level power disconnections to deploy modern UL 489 panel board centers transforms highly dangerous home electrical systems into pristine, commercial-grade technology frameworks. By keeping service entrance conductor diameters aligned with continuous ampacity limits, enforcing separate ground-neutral bus bar paths, and respecting mandatory NEC Article 110.26 working clearance parameters, you construct an unshakeable, exceptionally resilient residential grid infrastructure. For final checks, complete panel breaker power isolation safety testing before raw line handling, deploy CAT IV certified digital clamp meters, and execute every terminal step with safety-first precision.
